Foundation Settling, Crack & Bowing Wall Repair in South Bend

Why South Bend Foundations Settle and Sink

South Bend foundations settle primarily because fluctuating groundwater along the St. Joseph River washes fine sediment out from under footings, while alternating freeze-thaw cycles undermine soil support. When soil shifts or compresses beneath a home, footing loads drop unevenly, producing foundation settling, sinking corners, and exterior wall fractures.

South Bend sits along the St. Joseph River basin, on a soil profile dominated by sandy loam with localized pockets of clay. Sandy loam drains readily near the topsoil, but underground water movement carries fine silt away over decades in a process called soil migration. When support erodes, footings drop unevenly—often settling along a single load-bearing corner rather than the entire structure uniformly.

Signs You Need Foundation Repair

Recognizing the early warning signs of structural settlement allows homeowners to stabilize their property before small shifts turn into severe structural failure. If you spot any of the following symptoms, schedule a foundation inspection in South Bend so a local specialist can determine whether the movement is active:

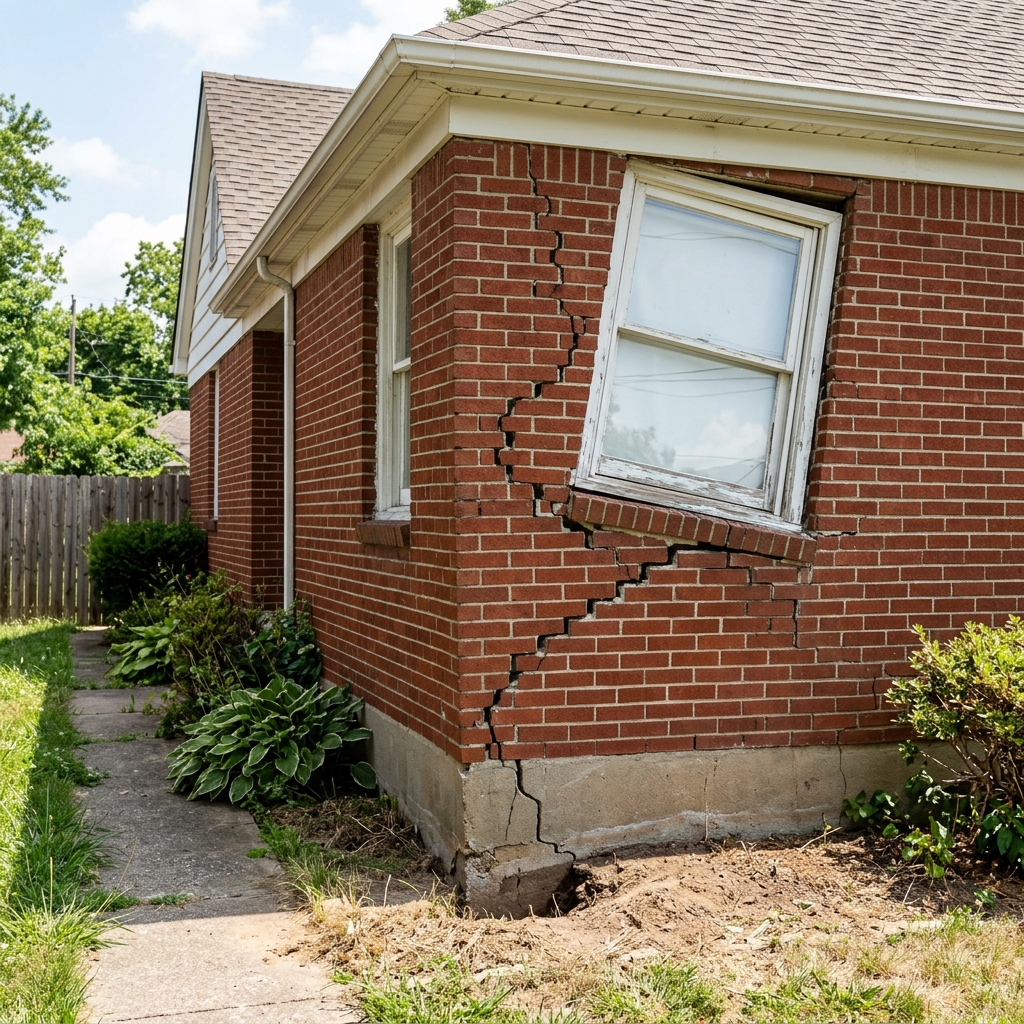

• Diagonal cracks in drywall, plaster, or exterior brickwork, especially fanning outward from window and door corners.
• Sloping or uneven floors where marbles roll or gaps appear beneath baseboards.
• Sticking doors and windows that rub against frames or latch with difficulty after rainfall or seasonal freezes.
• Bowing basement walls pushing inward along horizontal mortar joints under exterior soil pressure.
• Chimney separation where brickwork pulls visibly away from exterior siding or rooflines.

Many older homes in River Park, Near Northwest and the East Wayne Street historic district sit on block or brick foundations. Local specialists see settling and bowing walls there often, especially where clay soil holds water.

Concerned about structural movement in your home? Call (574) 800-4540 to connect with a South Bend foundation specialist for an evaluation.

Sinking Foundation Repair: Push Piers vs Helical Piers

Both push piers and helical piers stop a settling foundation by moving its weight down to firmer soil or load-bearing strata. Push piers are driven using the weight of the house itself and suit heavier structures. Helical piers are screwed in like a giant screw and work for lighter structures or where there is not enough weight to drive a push pier.

In South Bend, homes settle when topsoil layers soften from seasonal rain or when clay lenses shrink during hot, dry spells. To stabilize the building, local specialists install heavy-duty steel pier systems that transfer footing weight deep past compromised soil layers.

Do I need push piers or helical piers?

Your specialist selects the pier type based on the structure's weight, foundation depth, and soil testing. Push piers utilize heavy-duty hydraulic rams that drive rugged steel tube sections straight down using the structure's existing mass as resistance. They are ideal for two-story homes, full basements, and heavy masonry walls. Helical piers feature angled helical flights (screw blades) that rotate mechanically into the earth; they excel under light residential additions, attached garages, porches, and sites where foundation weight is insufficient for push pier driving.

Can piers lift my house back to level?

Once piers reach verified load-bearing soil or bedrock, hydraulic manifolds can often lift the foundation back toward its original level. How much lifting is achievable depends on the age of the structure, framing flexibility, and how long the home has settled. Your specialist will assess lift feasibility during the on-site inspection without making unrealistic guarantees.

Stop foundation settlement permanently. Book an on-site foundation inspection or call (574) 800-4540.

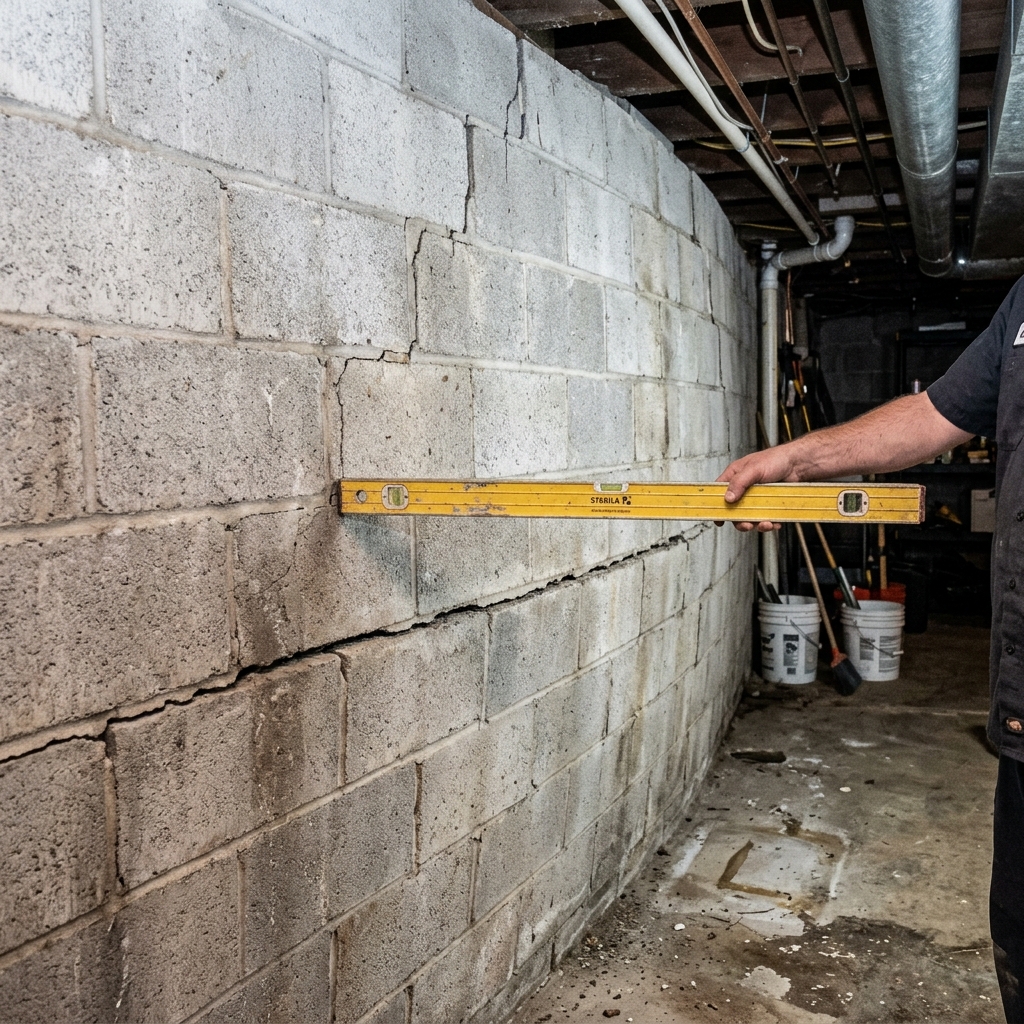

Bowing Basement Wall Repair: Wall Anchors vs Carbon Fiber

Bowing walls are pushed in by soil and water pressure from outside. Wall anchors hold the wall from the yard with steel rods and plates, and some can be tightened over time. Carbon fiber straps bond to the inside face of the wall to stop more movement and need no yard digging. Which one fits depends on how far the wall has moved.

South Bend basements endure severe lateral pressure when wet loam soil and dense clay pockets expand against masonry blocks. Lake-effect winter moisture and rapid spring melts cause soil to swell, forcing basement walls to deflect inward. If left unchecked, inward deflection leads to horizontal cracking, sheared block joints, and structural instability.

Can a bowing basement wall be fixed without rebuilding it?

In the vast majority of cases, yes. Installing engineered structural stabilization systems halts inward movement and restores lateral wall strength without requiring costly excavation and rebuilding of the masonry wall. However, if a wall has suffered catastrophic inward deflection, structural rebuilding or steel I-beam bracing may be necessary as determined by on-site engineering evaluation.

Wall anchors or carbon fiber — which is better?

Wall anchors utilize steel anchor plates driven into stable virgin soil deep in your yard, linked to interior wall plates by threaded steel rods. They provide immense holding power and can be adjusted over time to pull deflected walls back toward vertical. Carbon fiber straps are aerospace-grade woven fabrics bonded directly to the interior masonry with high-strength epoxy. Carbon fiber requires zero exterior excavation, cures flush against the wall for easy finishing, and permanently prevents further inward movement. Your specialist will measure wall deflection to recommend the appropriate system.

Is a horizontal crack in my basement wall serious?

Yes. A horizontal crack running mid-height along a block or poured concrete wall indicates high lateral soil pressure and active inward bowing. Because hydrostatic pressure often drives both bowing and basement flooding, structural wall stabilization is frequently paired with an interior drainage system. Read more on our South Bend basement waterproofing page.

Protect your basement walls from collapsing pressure. Call (574) 800-4540 for a wall evaluation.

Foundation Crack Repair

Not every foundation crack is structural. Thin vertical cracks in poured concrete are often from shrinkage and mainly a leak risk. Horizontal cracks, stair-step cracks in block, and cracks that are wider at one end or keep growing can mean the foundation is moving and should be inspected.

Concrete naturally shrinks as it cures, creating narrow vertical hairline cracks that rarely affect load-bearing strength but can permit water intrusion during South Bend's wet springs. Conversely, cracks caused by shifting soils, frost heave, or settling footings require structural remediation.

Are vertical foundation cracks normal?

Vertical hairline cracks are very common in poured concrete foundations. When caused simply by thermal expansion or initial curing shrinkage, they do not threaten structural stability. However, they frequently provide direct conduits for groundwater seepage under hydrostatic pressure and should be professionally sealed to keep basements dry.

When is a foundation crack serious?

Cracks demand prompt professional attention when they run horizontally along basement walls, climb in stair-step patterns across concrete block mortar lines, measure wider than one-quarter inch, or show shearing where one side of the crack protrudes past the other. A simple homeowner check is to mark the ends of the crack with a pencil and write the date next to it; if the crack extends past the pencil mark over the following weeks, active movement is occurring.

Can I seal a foundation crack myself?

Surface caulks and DIY hydraulic cements applied to the inside face rarely last in South Bend's saturated soils because hydrostatic pressure quickly blows them loose from behind. Local specialists utilize pressurized commercial injection to fill the crack through the entire wall thickness—flexible polyurethane foam to block active water seepage, or structural epoxy to weld cracked concrete back together.

Have a foundation crack evaluated by an expert. Schedule an inspection today.

House Leveling for Sloping Floors

Sloping floors come either from the foundation settling or from sagging framing in the crawl space or basement. Leveling fixes the cause: piers for a settling foundation, or support posts and beams for sagging joists. Then the floor is brought back as close to level as the house allows.

When walking across your home feels uneven or doors refuse to stay latched, an accurate structural diagnosis is critical. A specialist determines whether the movement stems from perimeter foundation settlement or interior support beam sagging.

Why are my floors sloping?

If perimeter footings sink into soft sandy loam, outer walls dip and pull floor joists downward with them. In other cases, high humidity in unsealed basements or crawl spaces weakens wooden beams, causing center spans to sag while exterior walls stay fixed. Specialists use precision laser levels during the on-site inspection to map elevation variance and identify the exact source.

Can a house be leveled?

Yes. If settlement caused the slope, exterior steel piers stabilize footings and allow controlled hydraulic lifting. If weak framing caused the sag, local specialists install adjustable heavy-duty steel support columns and supplemental sister beams. For older South Bend homes, "level" realistically means stabilizing the structure safely and lifting it as close to true level as plumbing lines, framing, and masonry allow without causing secondary cosmetic cracking.

Learn more about floor joist stabilization on our South Bend crawl space encapsulation page, or call (574) 800-4540.

Commercial Foundation Repair in South Bend

Commercial properties face the same South Bend soil and water problems as homes, at a bigger scale and with tenants and operations to work around. Local licensed specialists handle settling slabs, cracked foundation walls, and water intrusion for commercial buildings, starting with an on-site evaluation.

Commercial structures—including retail centers, multi-unit residential properties, light industrial warehouses, and office complexes—require specialized engineering solutions that minimize operational downtime. South Bend's river basin water table and sandy loam soil can induce severe differential slab settlement under heavy equipment and inventory loads.

Partner contractors provide comprehensive structural assessments, detailed scopes of work, and engineering documentation suitable for property managers, commercial owners, and insurance adjusters. Crews coordinate scheduling around business operating hours to keep facilities accessible and compliant with local building standards.

Managing a commercial facility with foundation concerns? Request a commercial structural evaluation or call (574) 800-4540.

Permits for Foundation Repair in South Bend

Building permits for South Bend foundation repair projects are managed through the St. Joseph County Building Department. Major structural repairs, including push pier underpinning, helical pier installation, and steel wall anchor systems, typically require structural permits and local code inspections. Your assigned local contractor will verify requirements, prepare necessary documentation, and handle all inspection filings as part of your project.
